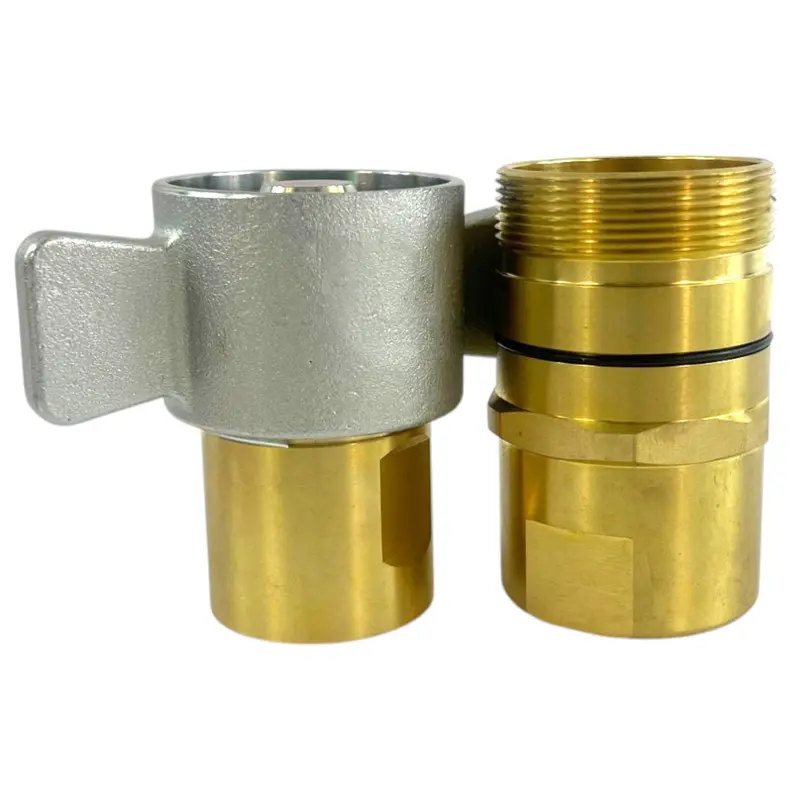

AKSpare 1-1/2″ Wet-Line / Wing Nut Coupler Set
SKU: WSC-38 NPT112
AKSpare 1-1/2″ Wet-Line / Wing Nut Couplers are designed for demanding industrial applications where quick couplings need to be connected and disconnected under pressure with minimal fluid loss. These couplers are widely used in wet-line hydraulic systems for dump trailers, live bed trailers, and other heavy-duty equipment.
Applications:
- Dump Trailers
- Live Bed Trailers
- Mobile Drilling Rigs
- Sand & Salt Spreaders
- Oil Well Equipment
- Heavy Equipment
Key Features:
- Durable Construction: Brass body coupler and nipple resist corrosion for long-lasting performance.
- Heavy-Duty Sleeve & Wing Nut: Steel sleeve and wing nut ensure a secure and reliable connection.
- Sealing Performance: Nitrile seal with Teflon backup provides excellent leak resistance.
- High-Pressure Capability: Rated for 3000 PSI working pressure.
- Optimal Flow Rate: 80 GPM nominal flow rate for efficient hydraulic performance.
- Standard Connection: 1-1/2″ NPT Female Pipe Thread for compatibility with common hydraulic systems.
Cross-Reference Compatibility:
Our quick connect couplers are compatible with the following manufacturers and part numbers:
| Manufacturer | Male | Female | Set |
|---|---|---|---|
| AKSpare | WSC-38 M NPT112 | WSC-38 F NPT112 | WSC-38 NPT112 |
| Parker 6100 Series | 6105-24 | 6125-24 | 6100-24 |
| Eaton Aeroquip 5100 Series | 5100-S4-24B | 5100-S5-24B | 5101-24B |
| Dixon W Series | W12F12-B | 12WF12-B | – |
| Faster FB Series | FB 24/112NPT M5 | FB 24/112NPT F5 | – |
| Snap-Tite 78 Series | B78N24-24F | B78C24-24F | – |
| Stucchi W Series | 100610124 | N51WS-24-24 NPT | 100610024 |
| DNP | VFF-24-24-N-NPT | VFF-24-24-C-NPT | – |
What’s Included:
- 1 x Female Wet Line Coupler
- 1 x Male Wet Line Coupler
Ensure a secure and leak-free hydraulic connection with Summit’s high-quality 1-1/2″ Wet-Line / Wing Nut Coupler Set. Perfect for heavy-duty applications requiring high flow and pressure resistance.
