1/2″ Ag Hydraulic Quick Connect Couplers, Poppet Valve, 1/2″ NPT Thread

1/2″ ISO 5675 Hydraulic Quick Coupler Set – 1/2″ NPT, Poppet Valve

SKU: AG12-08N-SET

The AG12-08N-SET is a heavy-duty hydraulic quick coupler set designed for agriculture, construction, and logging applications. Engineered for ISO 5675 / Pioneer-style compatibility, these couplers work with ball seat valve, poppet seal, and ISO 7241-A quick couplers, ensuring reliable and leak-free hydraulic connections.

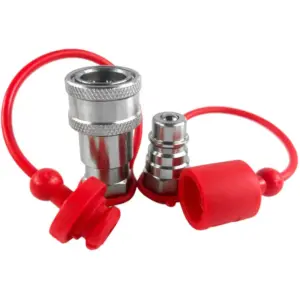

This set includes both a male and female coupler, each constructed from hardened steel with a poppet valve design, providing secure locking and minimal fluid loss. The 1/2” NPT thread ensures easy integration with a variety of hydraulic systems.

Key Benefits & Features

• ISO 5675 & ISO 7241-A Compatible – Works with all Pioneer-style quick couplers
• Hardened Steel Construction – Built for durability and long service life
• High-Pressure Rating – 3600 PSI working pressure
• Optimized Flow Rate – 12 GPM nominal, 24 GPM max flow
• Quick & Secure Connection – Sleeve-locking mechanism for a reliable fit
• High-Temperature Resistance – Buna-N seals ensure performance up to 250°F
• Includes PVC Dust Cap & Plug – Protects couplers from contaminants

Applications

• Tractors & Farm Equipment
• Construction & Heavy Machinery
• Forestry & Logging Equipment
• Hydraulic Implements & Attachments

Specifications

• ISO Standard: 5675 / 7241-A
• Thread Type: NPT
• Thread Size: 1/2″ NPT
• Body Size: 1/2″
• Valve Type: Poppet Seal
• Max Operating Pressure: 3,600 PSI
• Nominal Flow Rate: 12 GPM
• Maximum Flow Rate: 24 GPM
• Burst Pressure: 23,000 PSI (Coupled)
• Locking Mechanism: Sleeve with radial locking balls
• Material: Hardened Steel
• Sealing Type: Buna-N

Weight & Dimensions:

• Weight: 1 lb
• Dimensions: 5″ x 4″ x 3″
