1/2″ ISO 5675 Hydraulic Quick Coupler Set – SAE #10(5/8″) ORB, 3600 PSI
SKU: AGP12-SAE58
The AGP12-SAE58 is a premium-quality hydraulic quick coupler set, featuring both male and female couplers, designed for agriculture, construction, and logging applications. Engineered to be fully interchangeable with 1/2” body ISO 5675 / Pioneer-style couplers, including ball seat valve, poppet seal, and ISO 7241-A couplers, this set ensures leak-free performance and durability.
Manufactured from hardened steel, these couplers are built to withstand demanding hydraulic applications with a SAE #10(5/8″) ORB (7/8-14 UNF Female ORB) thread connection.
Key Benefits & Features
- ISO 5675 & ISO 7241-A Compatible – Works with all Pioneer-style quick couplers (The 1/2″ Comply with ISO 5675 and ISO A)
- Heavy-Duty Hardened Steel Construction – For extreme durability and long service life
- High-Pressure Rating – 3600 PSI operating pressure
- Optimized Flow Rate – 12 GPM nominal, 24 GPM max flow
- Quick & Secure Connection – Sleeve-locking mechanism for a reliable fit
- High-Temperature Resistance – Buna-N seals for superior sealing under pressure

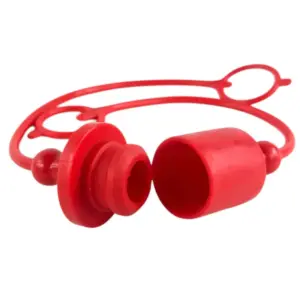

- Includes PVC Dust Cap & Plug – Protection from contaminants
Applications
- Tractors & Farm Equipment
- Construction & Heavy Machinery
- Forestry & Logging Equipment
- Hydraulic Implements & Attachments
Specifications
- ISO Standard: 5675 / 7241-A (Only 1/2″ Body Size BOTH fit the ISO 5675 and ISO 7241-A)
- Thread Type: SAE/ORB
- Thread Size: #10 SAE (5/8″ SAE) (7/8-14 UNF Female ORB)
- Body Size: 1/2″
- Valve Type: Poppet Seal
- Max Operating Pressure: 3,600 PSI
- Nominal Flow Rate: 12 GPM
- Maximum Flow Rate: 24 GPM
- Burst Pressure: 23,000 PSI (Coupled)
- Locking Mechanism: Sleeve with radial locking balls
- Material: Hardened Steel
- Sealing Type: Buna-N
Weight & Dimensions:
- Weight: Approx. 1 lb
- Dimensions: 5″ x 4″ x 3″
Interchangeable With:
| Manufacturer | Male Coupler | Female Coupler |
|---|---|---|
| AKSpare | AGP12-M SAE58 | AGP12-F SAE58 |
| Parker 4000 Series | 8010-16P | 4050-16P |
| Safeway S20 Series | S71-16P | S25-16P |
| Faster NV/NS Series | NV 12-58SAE M | NV 12-58SAE F |
| Dixon AG Series | AG4OF5-PV | 4AGOF5-PV |
Compatible With:
- Bobcat (2001 or older) Models: 543, 534B, 631, 632, 641, 642, 642B, 643, 732, 741, 742, 743, 743B, 843, 843B
What’s Included?

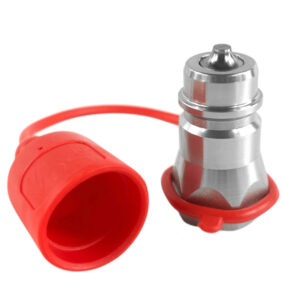

- 1 x Male 1/2” Body Hydraulic Quick Coupler (SAE #10 ORB, Poppet Seal)
- 1 x Female 1/2” Body Hydraulic Quick Coupler (SAE #10 ORB, Poppet Seal)
- 1 x PVC Dust Plug
- 1 x PVC Dust Cap
