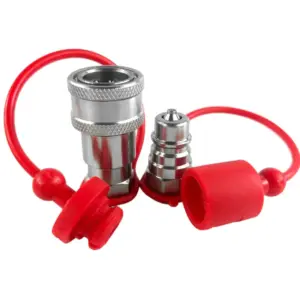

1/2″ ISO 5675 Hydraulic Quick Coupler Set – SAE #8 ORB, 3600 PSI
SKU: AG12-08S-SET
The AG12-08S-SET is a high-quality hydraulic quick coupler set, including both male and female couplers, designed for agriculture, construction, and logging applications. Built for ISO 5675 / Pioneer-style compatibility, these couplers work with ball seat valve, poppet seal, and ISO 7241-A quick couplers, ensuring efficient hydraulic connections with minimal fluid loss.
Constructed from hardened steel and featuring a SAE #8 ORB (3/4-16 UNF Female O-Ring Boss) thread, this coupler set offers reliable sealing and high durability in heavy-duty applications.
Key Benefits & Features
- ISO 5675 & ISO 7241-A Compatible – Works with all Pioneer-style quick couplers
- Heavy-Duty Hardened Steel Construction – Built for durability and long service life
- High-Pressure Rating – 3600 PSI working pressure
- Optimized Flow Rate – 12 GPM nominal, 24 GPM max flow
- Quick & Secure Connection – Sleeve-locking mechanism for a reliable fit
- High-Temperature Resistance – Buna-N seals for superior performance
- Includes PVC Dust Cap & Plug – Protects couplers from contaminants
Applications
- Tractors & Farm Equipment
- Construction & Heavy Machinery
- Forestry & Logging Equipment
- Hydraulic Implements & Attachments
Specifications
- ISO Standard: 5675 / 7241-A
- Thread Type: SAE/ORB
- Thread Size: #8 ORB (3/4-16 UNF Female ORB)
- Body Size: 1/2″
- Valve Type: Poppet Seal
- Max Operating Pressure: 3,600 PSI
- Nominal Flow Rate: 12 GPM
- Maximum Flow Rate: 24 GPM
- Burst Pressure: 23,000 PSI (Coupled)
- Locking Mechanism: Sleeve with radial locking balls
- Material: Hardened Steel
- Sealing Type: Buna-N
Weight & Dimensions:
- Weight: Approx. 1 lb
- Dimensions: 5″ x 4″ x 3″
Interchangeable With:
| Manufacturer | Male Coupler | Female Coupler |
|---|---|---|
| SUMMIT | AG12M-08N | AG12F-08N |
| Parker 4000 Series | 8010-4P | 4050-4P |
| Safeway S20 Series | S71-4P | S25-4P |
| Faster NV/NS Series | NV 12 NPT M | NV 12 NPT F |
| Stucchi IRV Series | 800501005 | 800501004 |
| Dixon AG Series | AG4F4-PV | 4AGF4-PV |
What’s Included?
- 1 x Male 1/2” Body Hydraulic Quick Coupler (SAE #8 ORB, Poppet Seal)
- 1 x Female 1/2” Body Hydraulic Quick Coupler (SAE #8 ORB, Poppet Seal)
- 1 x PVC Dust Plug
- 1 x PVC Dust Cap
