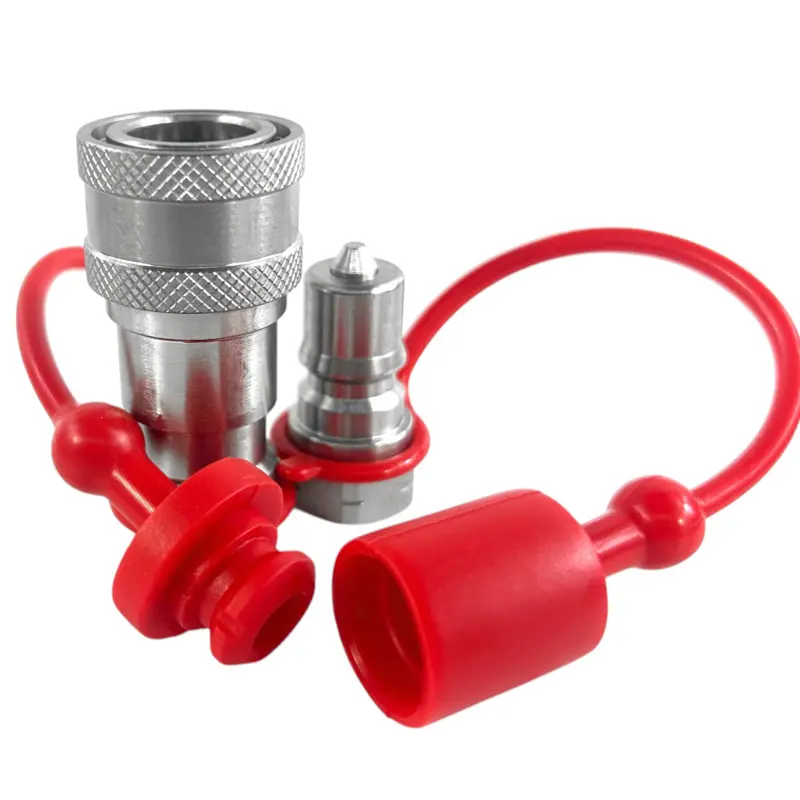

1/4″ ISO 7241-B Quick Disconnect Hydraulic Coupler Set, 3/8″ SAE Thread

• 1/4″ ISO 7241-B Hydraulic Quick Coupler Set (3/8″ SAE Thread, Male & Female)
• SKU: IB-06 SAE38
• ISO Standard: ISO 7241-B
• Body Size: 1/4″
• Thread Type: SAE/ORB
• Thread Size: 3/8″ SAE
• Coupling Type: Male & Female Set
• Body Material: Hardened Steel

High-Quality Hydraulic Quick Coupler Set

The IB-06 SAE38 quick disconnect coupler set includes one male and one female coupler, designed to ISO 7241-B standards for universal interchangeability. These couplers are ideal for industrial, mobile hydraulics, construction, and general-purpose applications. The poppet valve mechanism ensures leak-free performance under both high and low pressures, making it an essential choice for hydraulic systems.

Key Features & Benefits:

• ISO 7241-B Interchangeable – Compatible with all standard ISO 7241-B couplings
• Hardened Steel Construction – Provides superior durability and longevity
• Self-Sealing Poppet Valve – Ensures a tight, leak-proof seal
• 304 Stainless Steel Spring – Corrosion-resistant and long-lasting
• Radial Locking Balls – Secure connection with smooth operation
• Corrosion-Resistant ZN-Fe (CRIII) Plating – Enhances longevity and resistance to wear
• High Flow Capacity – Optimized for industrial hydraulic applications

Technical Specifications:

• Body Material: Hardened Steel
• Finish: ZN-Fe (CRIII) Plating
• Seal Material: Nitrile Buna-N (NBR)
• Spring Material: 304 Stainless Steel
• Max Working Pressure: 3,600 PSI
• Burst Pressure (Coupled): 14,500 PSI
• Locking Type: Sleeve Lock

Flow Performance:

• Nominal Flow Rate: 3.17 GPM
• Max Flow Rate: 6.34 GPM

What’s Included?

• 1 x Male Quick Coupler
• 1 x Female Quick Coupler

Product Details:

• ISO Standard: 7241-B
• Style: ISO 7241-B
• Body Size: 1/4″
• Thread Type: SAE/ORB
• Thread Size: 3/8″ SAE
• Body Material: Hardened Steel
• Locking Type: Sleeve Lock
• Weight: 0.31 lbs
• Brand: AKSpare

Perfect for Various Hydraulic Applications:

• Construction Equipment
• Agricultural Machinery
• Industrial & Mobile Hydraulics
• General-Purpose Hydraulic Systems
