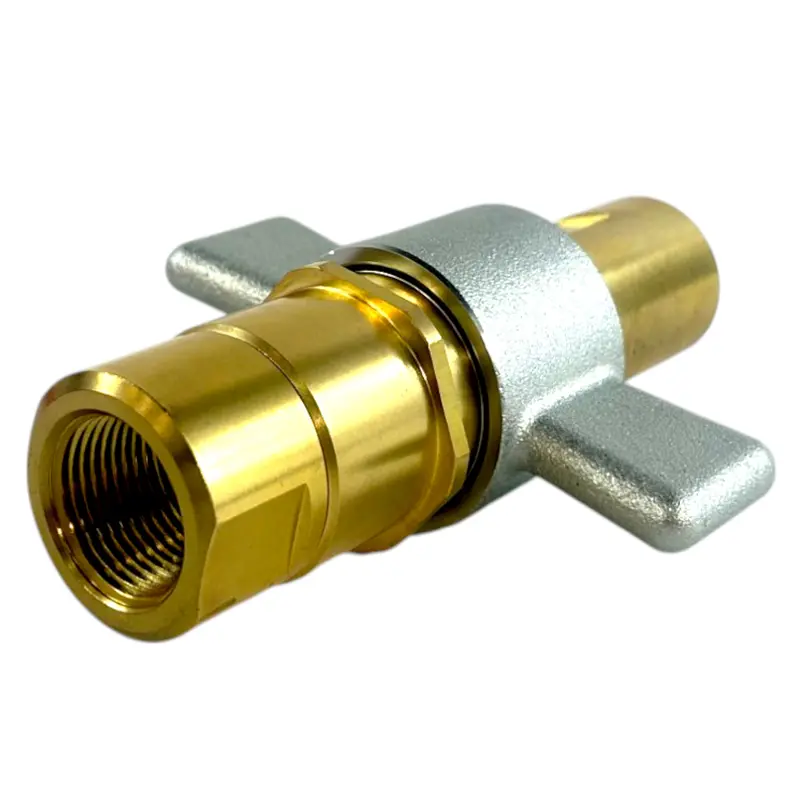

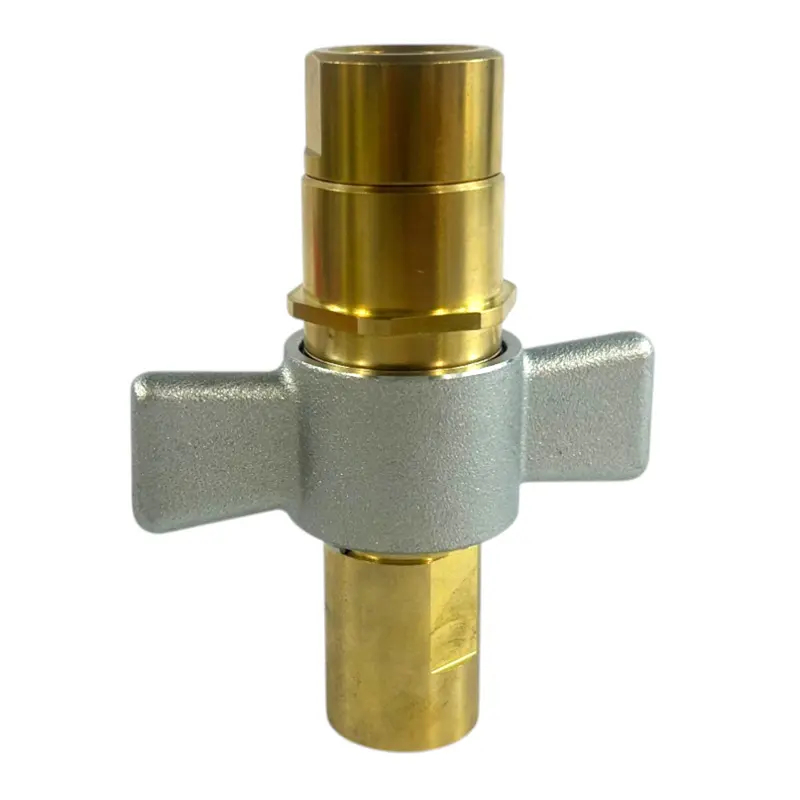

3/4″ Wet-Line / Wing Nut Hydraulic Quick Coupler Set – 3/4″ NPT (Male & Female)
SKU: WSC-19 NPT34
The 3/4″ Wet-Line / Wing Nut Hydraulic Quick Coupler Set is designed for heavy-duty hydraulic applications, providing a secure and reliable connection under pressure with minimal fluid loss. These couplers are commonly used in dump trailers, live bed trailers, mobile drilling rigs, sand spreaders, oil well equipment, and more.
This set includes both a male and a female coupler, offering a durable and efficient hydraulic connection solution.
Key Features & Benefits
- Brass Body Construction – Corrosion-resistant for long-term durability
- Heavy-Duty Steel Sleeve & Wing Nut – Ensures secure locking and a reliable fit
- Nitrile Seal with Teflon Backup – Provides enhanced leak resistance
- High Pressure Capacity – Rated for 3,000 PSI working pressure
- Optimized Flow Rate – Nominal flow of 35 GPM
- 3/4″ NPT Female Pipe Thread – Standard threading for easy system integration
Applications
- Dump Trailers
- Live Bed Trailers
- Mobile Drilling Rigs
- Sand & Salt Spreaders
- Oil Well Equipment
- Heavy Equipment
Specifications
- Body Size: 3/4″
- Thread Type: NPT
- Thread Size: 3/4″
- Max Operating Pressure: 3,000 PSI
- Nominal Flow Rate: 35 GPM
- Seal Type: Nitrile with Teflon Backup
- Locking Mechanism: Wing Nut
- Material: Brass body with steel sleeve
Interchangeable With:
| Manufacturer | Male Coupler | Female Coupler | Set |
|---|---|---|---|
| AKSpare | WSC-19 M NPT34 | WSC-19 F NPT34 | WSC-19 NPT34 |
| Parker 6100 Series | 6105-12 | 6125-12 | 6100-12 |
| Eaton Aeroquip 5100 Series | 5100-S4-12B | 5100-S5-12B | 5101-12B |
| Dixon W Series | W6F6-B | 6WF6-B | — |
| Faster FB Series | FB 12/34 NPT M5 | FB 12/34 NPT F5 | — |
| Snap-Tite 78 Series | B78N12-12F | B78C12-12F | — |
| Stucchi W Series | 100610112 N51WS-12-12 NPT | 100610012 C51WS-12-12 NPT | — |
| DNP VFF Series | VFF-12-12-N-NPT | VFF-12-12-C-NPT | — |

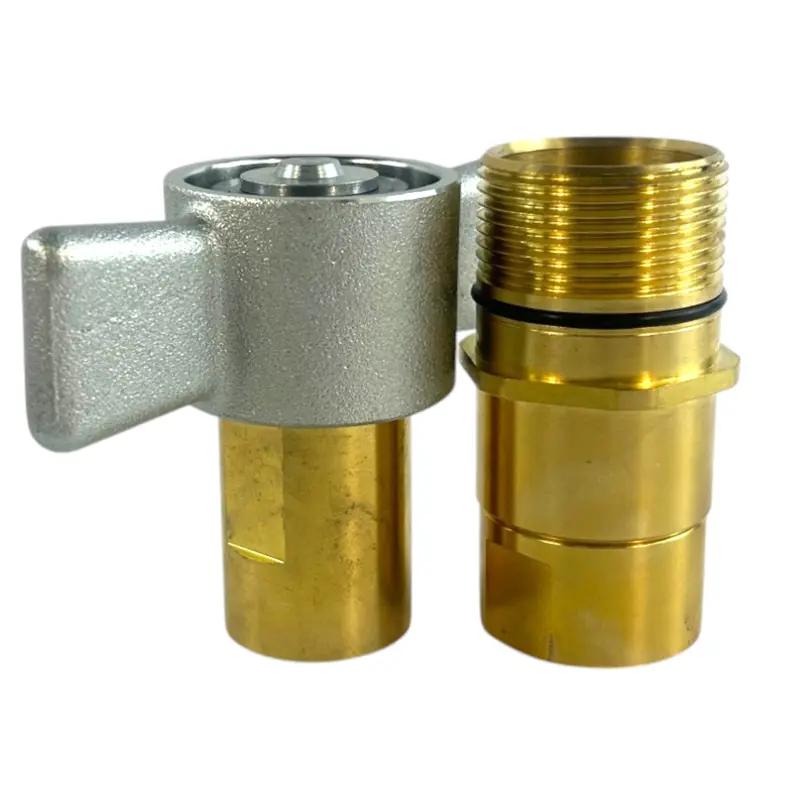

What’s Included in the Kit?
- 1 x Female Wet-Line Quick Coupler (3/4″ NPT)
- 1 x Male Wet-Line Quick Coupler (3/4″ NPT)
A complete, high-quality hydraulic coupling solution for industrial applications.
