| BRAIDED | SPIRAL | THREADE | DN | DASH | A | C | H | S2 |
|---|---|---|---|---|---|---|---|---|
| 24291Y-04-04 | – | 9/16″X18 | 6 | 4 | 27 | 8.5 | 24.4 | 19 |
| 24291Y-06-04T | – | 11/16″X16 | 6 | 4 | 27 | 10 | 30 | 22 |
| 24291Y-06-06 | 24292Y-06-06 | 11/16″X16 | 10 | 6 | 34.5 | 10 | 30 | 22 |
| 24291Y-08-06T | 24292Y-08-06T | 13/16″X16 | 10 | 6 | 34.5 | 11 | 39 | 27 |
| 24291Y-08-08 | 24292Y-08-08 | 13/16″X16 | 13 | 8 | 40.7 | 11 | 38.7 | 27 |
| 24291Y-10-08 | 24292Y-10-08 | 1″X14 | 13 | 8 | 41 | 13.5 | 44.5 | 30 |
| 24291Y-10-10 | 24292Y-10-10 | 1″X14 | 16 | 10 | 53 | 13.5 | 44.5 | 30 |
| 24291Y-12-08T | 24292Y-12-08T | 1.3/16″X12 | 13 | 8 | 41 | 14 | 44.5 | 36 |
| 24291Y-12-10T | 24292Y-12-10T | 1.3/16″X12 | 16 | 10 | 53 | 14 | 49 | 36 |
| 24291Y-12-12T | 24292Y-12-12T | 1.3/16″X12 | 19 | 12 | 61 | 14 | 54 | 36 |
| 24291Y-16-12T | 24292Y-16-12T | 1.7/16″X12 | 19 | 12 | 61 | 14.8 | 55 | 41 |
| 24291Y-16-16T | 24292Y-16-16T | 1.7/16″X12 | 25 | 16 | 75 | 14.8 | 65 | 41 |
| 24291Y-20-20W | 24292Y-20-20W | 1.11/16″X12 | 32 | 20 | 91 | 15 | 80.5 | 50 |
| 24291Y-24-24T | 24292Y-24-24T | 2″X12 | 38 | 24 | 106/114.6 | 14.8 | 89 | 60 |

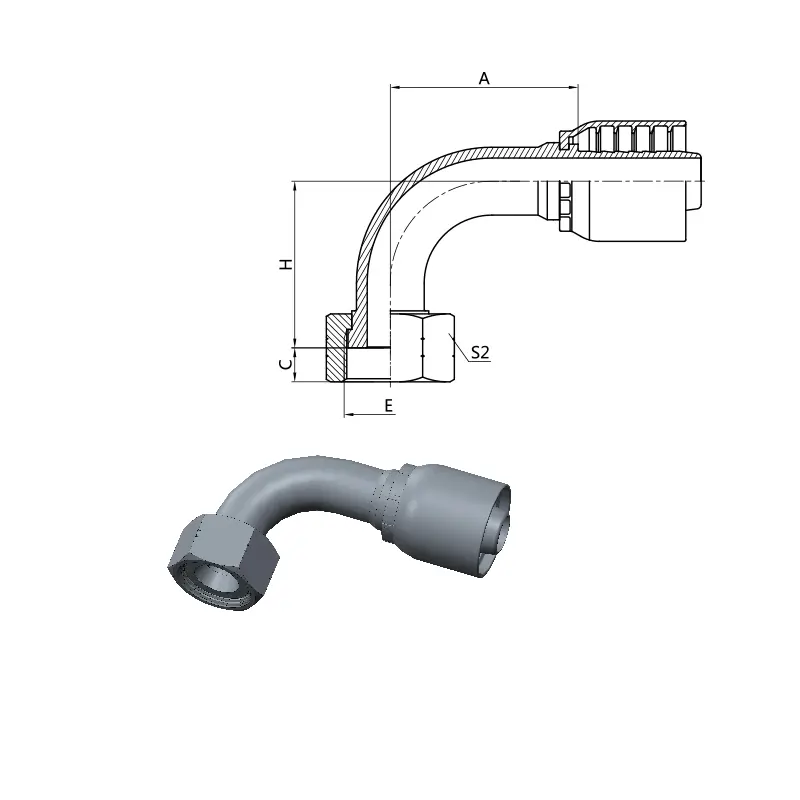

Hose Tail One-Piece Hose Fitting – ORFS Female Thread, 90° Elbow
Our Hose Tail One-Piece Hose Fitting with a 90° elbow and ORFS (O-Ring Face Seal) female thread offers a strong, leak-proof connection ideal for high-pressure hydraulic applications.
The tight 90° angle allows for compact hose routing in tight spaces without sacrificing performance.
Key Features:
- ORFS Connection: Provides a reliable, leak-free seal, even under high pressure and vibration.
- 90° Elbow Design: Great for sharp turns and compact system layouts.
- One-Piece Construction: Reduces potential leak points, improves strength, and simplifies installation.
- High-Quality Material: Precision-machined steel with zinc plating for excellent corrosion resistance.
- Wide Compatibility: Suitable for both braided and spiral hydraulic hoses.
Available Sizes:
- Hose sizes from 6mm (1/4″) to 38mm (1-1/2″) inner diameter.
- Thread sizes from 9/16″–18 UNF to 2″–12 UNF.
Applications:
- Heavy machinery
- Hydraulic systems
- Agricultural and construction equipment
- Industrial hydraulic maintenance
Technical Highlights:
- Thread type: ORFS female (O-Ring Face Seal)
- Hose types: Suitable for braided and spiral hoses
- Designed for high-pressure, leak-free hydraulic applications
