Product Overview
The NPT x NPT Hex Nipple Adapter is a straight male-to-male hydraulic adapter, ideal for connecting two NPT-threaded components in hydraulic, pneumatic, and industrial fluid systems. Designed for high durability and leak-resistant performance, these adapters are available in a wide range of sizes and materials to suit your specific needs.
Key Features
- Thread Type (Both Ends): National Pipe Taper (NPT)
- Connection Type: Male x Male
- Design: Hex body for easy wrench tightening
- Sizes Available: NPT 1/8″, NPT 1/4″, NPT 3/8″, NPT 1/2″, NPT 3/4″, NPT 1″, NPT 1-1/4″
- Material Options: Hardened Steel: For high-pressure and industrial use, Stainless Steel: For corrosion resistance and longevity in harsh environments
- Pressure Rating: Suitable for a wide range of hydraulic applications
- Surface Finish: Clean, machined finish for optimal sealing performance
Applications
- Hydraulic systems
- Pneumatic lines
- Agricultural machinery
- Construction equipment
- Industrial fluid transfer
Why Choose AKSpare?
- Manufactured with precision and tested for quality assurance
- Compatible with most standard NPT hydraulic components
- Backed by our commitment to durability and customer satisfaction
Selection Guide
Please select your preferred End 1 Thread, End 2 Thread, and Body Material from the options above to configure your adapter.

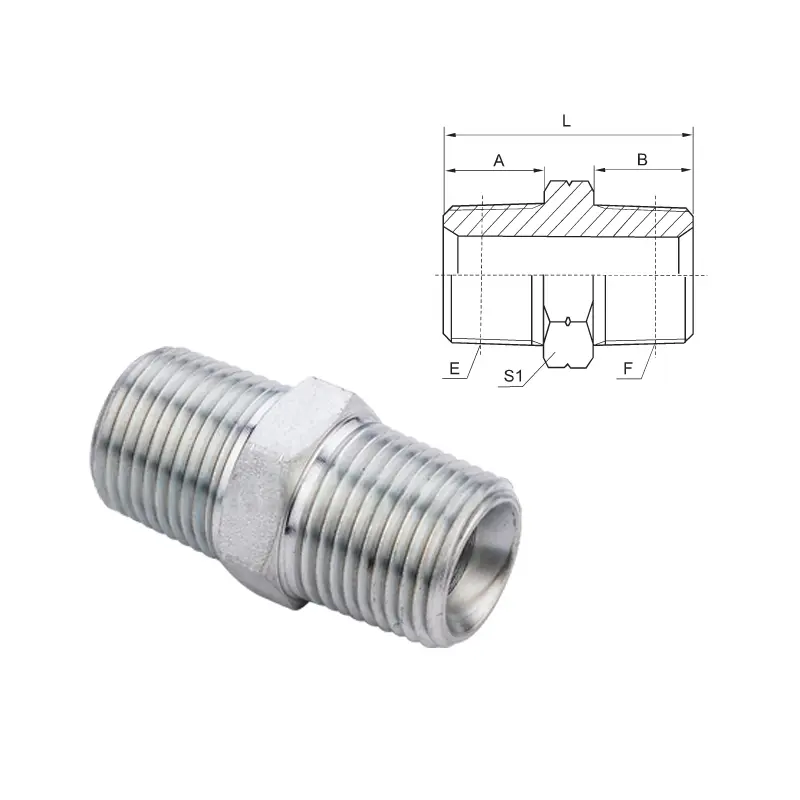

| PART NO. | THREAD | DIMENSIONS | ||||
|---|---|---|---|---|---|---|
| E | F | A | B | L | S1 | |
| 1N-02 | npt1/8″X27 | npt1/8″X27 | 10.5 | 10.5 | 27 | 12 |
| 1N-02-04 | npt1/8″X27 | npt1/4″X18 | 10.5 | 15 | 31 | 17 |
| 1N-02-06 | npt1/8″X27 | npt3/8″X18 | 10.5 | 16 | 32 | 19 |
| 1N-04 | npt1/4″X18 | npt1/4″X18 | 15 | 15 | 35 | 17 |
| 1N-04-06 | npt1/4″X18 | npt3/8″X18 | 15 | 16 | 37 | 19 |
| 1N-04-08 | npt1/4″X18 | npt1/2″X14 | 15 | 19.5 | 41.5 | 22 |
| 1N-06 | npt3/8″X18 | npt3/8″X18 | 16 | 16 | 38 | 19 |
| 1N-06-08 | npt3/8″X18 | npt1/2″X14 | 16 | 19.5 | 43.5 | 22 |
| 1N-06-12 | npt3/8″X18 | npt3/4″X14 | 16 | 19.5 | 45.5 | 27 |
| 1N-08 | npt1/2″X14 | npt1/2″X14 | 19.5 | 19.5 | 47 | 22 |
| 1N-08-12 | npt1/2″X14 | npt3/4″X14 | 19.5 | 19.5 | 49 | 27 |
| 1N-08-16 | npt1/2″X14 | npt1″X11.5 | 19.5 | 25.5 | 56 | 36 |
| 1N-12 | npt3/4″X14 | npt3/4″X14 | 19.5 | 19.5 | 49 | 27 |
| 1N-12-16 | npt3/4″X14 | npt1″X11.5 | 19.5 | 25.5 | 55 | 36 |
| 1N-12-20 | npt3/4″X14 | npt1.1/4″X11.5 | 19.5 | 26.5 | 59 | 46 |
| 1N-16 | npt1″X11.5 | npt1″X11.5 | 25.5 | 25.5 | 61 | 36 |
| 1N-16-20 | npt1″X11.5 | npt1.1/4″X11.5 | 25.5 | 26.5 | 64 | 46 |
| 1N-16-24 | npt1″X11.5 | npt1.1/2″X11.5 | 25.5 | 27.5 | 68 | 50 |
| 1N-20 | npt1.1/4″X11.5 | npt1.1/4″X11.5 | 26.5 | 26.5 | 65 | 46 |
| 1N-20-24 | npt1.1/4″X11.5 | npt1.1/2″X11.5 | 26.5 | 27.5 | 69 | 50 |
| 1N-24 | npt1.1/2″X11.5 | npt1.1/2″X11.5 | 27.5 | 27.5 | 69 | 50 |
| 1N-24-32 | npt1.1/2″X11.5 | npt2″X11.5 | 27.5 | 27.5 | 72 | 65 |
| 1N-32 | npt2″X11.5 | npt2″X11.5 | 27.5 | 27.5 | 71 | 65 |
