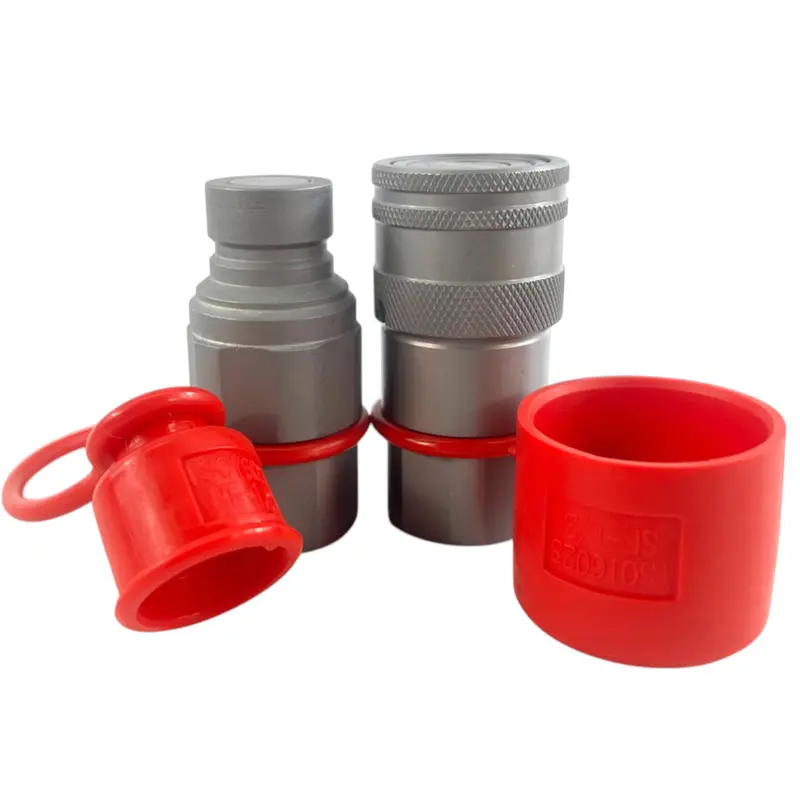

1/2″ Flat Face Hydraulic Quick Connect Coupler Set, 3/8″ NPT Thread

1/2” Flat Face Hydraulic Quick Connect Coupler Set – 3/8” NPT Thread

SKU: FF-12 NPT38

This 1/2” flat face hydraulic quick coupler set is designed for high-pressure hydraulic systems, offering spill-resistant, leak-free connections. The ISO 16028 flat face design minimizes fluid loss, reduces contamination, and ensures efficient performance with minimal pressure drops. Engineered with hardened steel construction and trivalent zinc plating, this coupler set is built for durability and corrosion resistance.

Key Features & Benefits

• Universal Quick Coupler & Plug Set – Compatible with all ISO 16028 standard couplings.
• Flat Face Design – Prevents leaks and contamination, superior to Agricultural/Pioneer couplers.
• Push-to-Connect Operation – Quick, easy, and secure single-handed connection.
• Heavy-Duty Construction – 5,076 PSI pressure rating for tough applications.
• High Flow Efficiency – Handles up to 23.78 GPM max flow rate.
• Durable & Corrosion-Resistant – Hardened steel construction with trivalent zinc plating for long-lasting performance.
• Locking Sleeve Protection – Prevents accidental disconnections.
• Temperature-Resistant Seals – Buna-N seals with Teflon backup ring rated up to 250°F.

Specifications

• ISO Standard: 16028
• Body Size: 1/2″
• Thread Type: NPT
• Thread Size: 3/8″
• Max Pressure: 5,076 PSI
• Max Flow Rate: 23.78 GPM
• Seals: Buna-N with Teflon backup ring (rated up to 250°F)
• Body Material: Hardened Steel
• Locking Type: Ball
• Weight: 2 lbs
• Dimensions: 8 × 5 × 4 in

This high-performance hydraulic quick coupler set is perfect for construction, agriculture, and industrial machinery.
