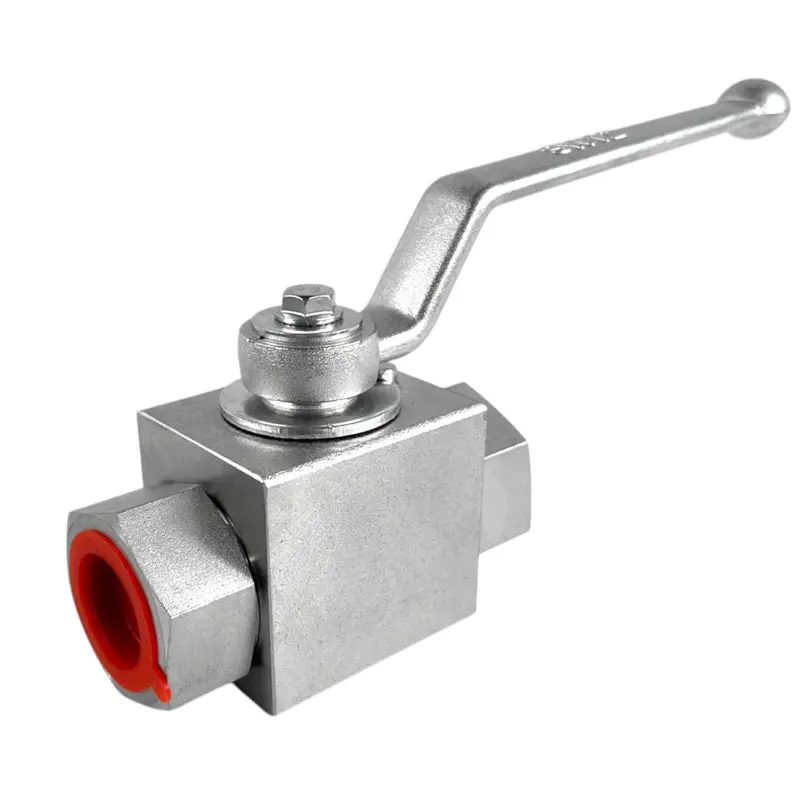

Hydraulic 2-Way Ball Valve – RS-2-VIE Series with Fixing Holes, 3/4″ NPT Ports | High Pressure

Hydraulic 2-Way Ball Valve – RS-2-VIE Series with Fixing Holes, 3/4″ NPT Ports | High Pressure

The RS-2-VIE Series Hydraulic 2-Way Ball Valve with 3/4″ NPT female ports is a rugged, high-pressure shut-off valve designed for demanding hydraulic applications. Featuring a full-bore design for maximum flow and low pressure drop, this valve is built from heavy-duty carbon steel and includes fixing holes for secure mounting on equipment and control panels.

• Hydraulic 2-Way Ball Valve 1/4″ – NPT 1/4″ Thread
• Hydraulic 2-Way Ball Valve 3/8″ – NPT 3/8″ Thread
• Hydraulic 2-Way Ball Valve 1/2″ – NPT 1/2″ Thread
• Hydraulic 2-Way Ball Valve 3/4″ – NPT 3/4″ Thread
• Hydraulic 2-Way Ball Valve 1″ – NPT 1″ Thread

Key Features:

• Model: RS-2-VIE-NPT34
• Port Size: 3/4″ NPT (Female Thread)
• Design: 2-way shut-off, full bore for unrestricted flow
• Material: Carbon steel body with corrosion-resistant zinc plating
• Ball: Hardened chrome-plated steel for long service life
• Seats/Seals: PTFE (Teflon) for superior sealing and chemical resistance
• Maximum Working Pressure: Up to 5000 PSI (345 bar)
• Temperature Range: -20°C to +120°C (-4°F to +248°F)
• Mounting: Includes fixing holes for easy and stable installation
• Handle: Manual quarter-turn lever for quick and secure operation

Typical Applications:

• Agricultural and construction machinery
• Hydraulic systems on trailers, loaders, and excavators
• Industrial hydraulic units and test benches
• High-pressure fluid shut-off and isolation systems

Why Choose the RS-2-VIE 3/4″ NPT Valve?

This 3/4″ NPT hydraulic 2-way ball valve delivers dependable shut-off performance under high pressure. With a durable body, full-bore flow, and integrated fixing holes, it ensures both long-lasting performance and easy installation in hydraulic circuits where reliability matters.
