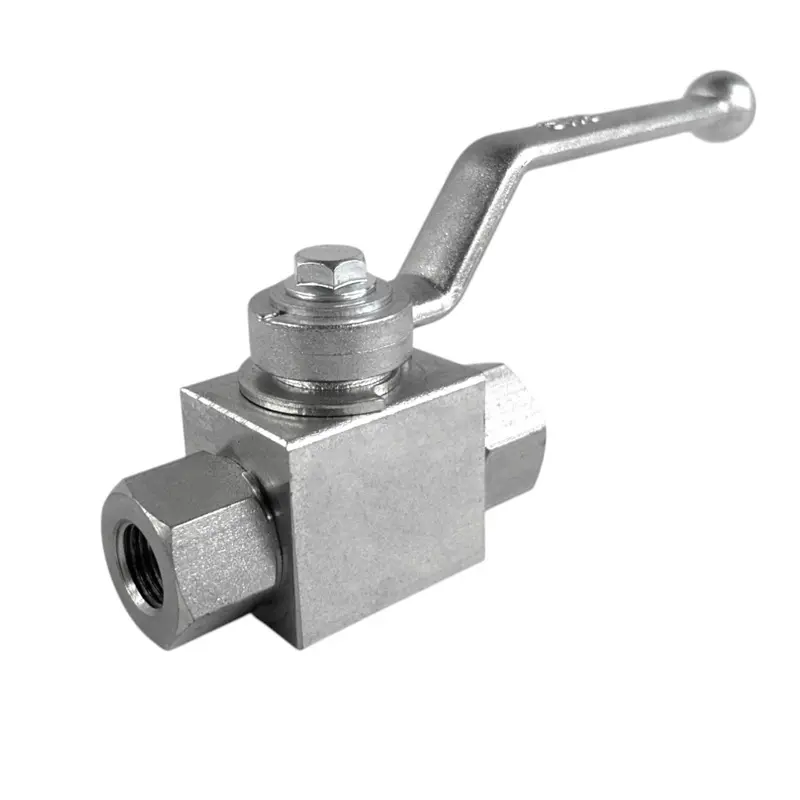

Hydraulic 2-Way Ball Valve with Fixing Holes – 1/4″ NPT Ports | High Pressure
Our Hydraulic 2-Way Ball Valve with 1/4″ NPT female ports is engineered for reliable and leak-free control in high-pressure hydraulic systems. Designed with robust carbon steel construction and zinc plating for corrosion resistance, this valve is built to withstand the toughest industrial environments.
- Hydraulic 2-Way Ball Valve 1/4″ – NPT 1/4″ Thread
- Hydraulic 2-Way Ball Valve 3/8″ – NPT 3/8″ Thread
- Hydraulic 2-Way Ball Valve 1/2″ – NPT 1/2″ Thread
- Hydraulic 2-Way Ball Valve 3/4″ – NPT 3/4″ Thread
- Hydraulic 2-Way Ball Valve 1″ – NPT 1″ Thread
Key Features:
- Port Size: 1/4″ NPT (Female Thread)
- Design: 2-way, full bore for unrestricted flow
- Material: Carbon steel body with hardened chrome-plated steel ball
- Working Pressure: Up to 5000 PSI (depending on application and connection method)
- Seal Material: PTFE for high chemical resistance and long service life
- Mounting: Includes precision-drilled fixing holes for secure installation
- Operation: Quarter-turn handle for fast open/close control
- Temperature Range: -20°C to +120°C (-4°F to +248°F)
Specifications:
| Feature | Details |
|---|---|
| Model | RS-2-VIE |
| Valve Type | 2-Way Ball Valve |
| Port Size | 1/4″ NPT (National Pipe Taper Female) |
| Flow Path | Full Bore |
| Material – Body | Carbon Steel (Zinc-Plated for Corrosion Resistance) |
| Material – Ball | Chrome-Plated Steel |
| Seat / Seal Material | PTFE (Teflon®) |
| Maximum Working Pressure | 5000 PSI (345 Bar) |
| Temperature Range | -20°C to +120°C (-4°F to +248°F) |
| Handle Type | Manual Lever, Quarter-Turn |
| Mounting | With Fixing Holes (for Secure Installation) |
| Flow Direction | Bi-Directional (Suitable for Both Flow Directions) |
| Applications | Hydraulic systems, mobile equipment, industrial machinery, test benches, construction and agricultural vehicles |
Applications:
- Hydraulic power units
- Agricultural and construction machinery
- Industrial fluid control
- Equipment requiring high-pressure shut-off capability
Why Choose This Valve?
Whether you’re looking to isolate hydraulic flow or control fluid direction in tight spaces, this compact and durable 2-way ball valve delivers consistent performance. The fixing holes allow easy panel or surface mounting, providing secure and vibration-resistant installation.
