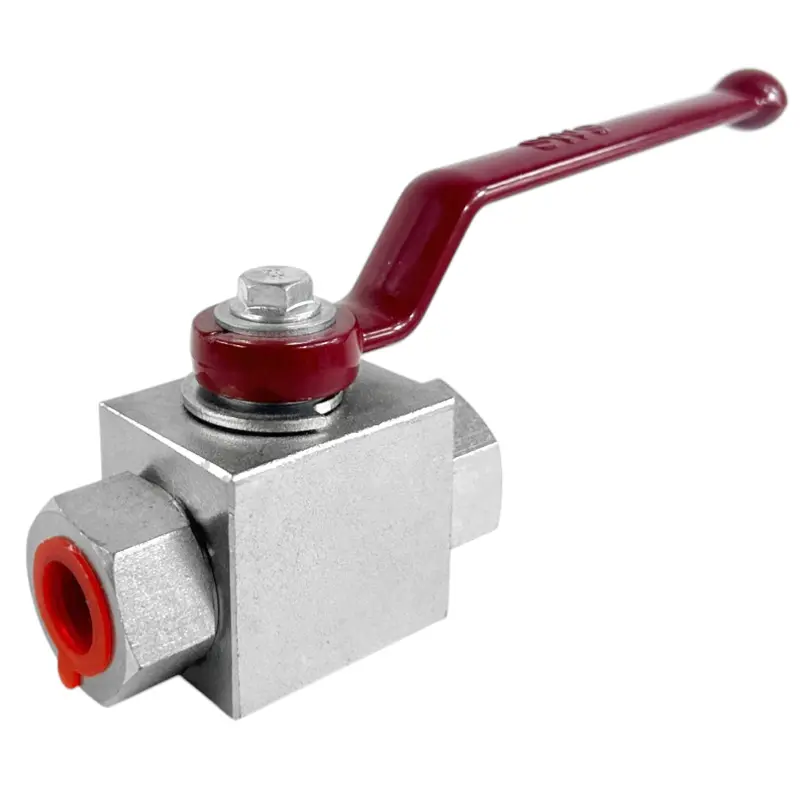

Hydraulic 2 Way Ball Valve With Fixing Holes, NPT 3/8″ Ports, RS 2 VIE,

Hydraulic 2-Way Ball Valve – RS 2 VIE Series with Fixing Holes, 3/8″ NPT Ports | High Pressure Valve

The RS 2 VIE Series Hydraulic 2-Way Ball Valve is a high-performance solution for reliable shut-off and control of hydraulic fluid in demanding applications. Featuring 3/8″ NPT female ports and a full-bore flow path, this heavy-duty valve is built to handle high-pressure environments while ensuring minimal pressure drop.

• Hydraulic 2-Way Ball Valve 1/4″ – NPT 1/4″ Thread
• Hydraulic 2-Way Ball Valve 3/8″ – NPT 3/8″ Thread
• Hydraulic 2-Way Ball Valve 1/2″ – NPT 1/2″ Thread
• Hydraulic 2-Way Ball Valve 3/4″ – NPT 3/4″ Thread
• Hydraulic 2-Way Ball Valve 1″ – NPT 1″ Thread

Key Features:

• Model: RS 2 VIE
• Port Size: 3/8″ NPT (Female Thread)
• Design: 2-way shut-off, full bore
• Material: High-strength carbon steel body with zinc plating for corrosion resistance
• Ball Material: Hardened chrome-plated steel
• Seal Type: PTFE (Teflon) seats for excellent chemical and wear resistance
• Maximum Working Pressure: Up to 5000 PSI (345 bar)
• Temperature Range: -20°C to +120°C (-4°F to +248°F)
• Mounting: Includes precision-machined fixing holes for stable panel or bracket installation
• Handle: Quarter-turn lever for quick and easy flow control

Applications:

• Hydraulic systems on construction and agricultural equipment
• Industrial machinery and manufacturing lines
• Hydraulic power units (HPUs)
• General high-pressure fluid control applications

Why Choose the RS 2 VIE 3/8″ Ball Valve?

Engineered for durability and easy integration, the RS 2 VIE 3/8″ ball valve offers dependable shut-off in compact hydraulic systems. The fixing holes provide secure mounting, making it suitable for mobile and stationary systems alike.
