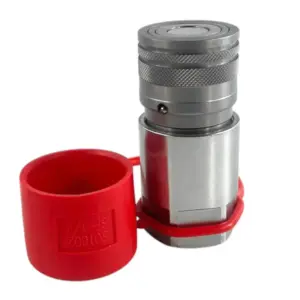

1/2″ Flat Face Hydraulic Quick Coupler (Female) – 1/2″ NPT Thread
SKU: FF-12 F NPT12
This 1/2″ female flat face hydraulic quick coupler features a flush face design, reducing fluid loss and preventing air inclusion for a cleaner hydraulic system. Designed for high performance, its hardened steel body with zinc plating ensures exceptional durability and corrosion resistance. Compatible with ISO 16028 standard couplings, this coupler is ideal for heavy-duty hydraulic applications.
Key Benefits
- Flush Face Valve Design – Reduces fluid loss and prevents contamination
- Locking Sleeve Mechanism – Prevents accidental disconnection for safety
- Corrosion-Resistant Zinc Plating – Extends coupler lifespan
- Durable Hardened Steel Construction – Withstands high pressure and rugged use
- Minimal Pressure Drops – Optimized internal flow for efficiency
- Easy One-Handed Push-Connect Operation – Quick and secure connection
- Reliable Sealing – Nipple seal resists blow-outs
- ISO 16028 Compatibility – Interchangeable with other standard flat face couplings
Specifications
- Body Size: 1/2″
- Port Thread: 1/2” NPT
- Max Pressure: 5,076 PSI
- Max Flow Rate: 23.78 GPM
- Nominal Flow Rate: 12 GPM
- Seal Material: Buna-N with Teflon backup ring (operating up to 250°F)
- Face Diameter: 1.50” (38mm)
- Length: 3.43” (87mm)
- Hex Size: 1.42” (36mm)
- Locking Type: Ball Lock
- Weight: 1.24 lbs
- Dimensions: 6 × 3 × 3 in
- Body Material: Hardened Steel
- Brand: AKSpare
Cross-Reference Part Numbers
This coupler is interchangeable with the following manufacturers and part numbers:
| Manufacturer | Female Coupler Part Number |
|---|---|
| AKSpare | FF-12 F NPT12 |
| Parker FE Series | FEM-501-8FP |
| Safeway FFE49 Series | FFE495-4 |
| Faster FFH Series | FFH08 12NPT F |
| Eaton Aeroquip FD89 | FD89-1001-08-08 |
| Snap Tite 74 Series | 74C8-8F |
| Stucchi FIRG Series | 800801006 |
| Dixon HT Series | 4HTF4 |
| DNP PLT4 Series | FF-HPG-08-08C-NPT |
| Tomco FE Series | EC4-26 |
Pair this female coupler with our FF-12 M NPT12 male coupler, or get the complete set (FF-12 NPT12) for a ready-to-use hydraulic connection.
